Kivy Crash Course - Image & AsyncImage Example

This is our sixth article on Kivy Crash Course, in this article we are going to to learn about Image & AsyncImage Example. so the Image widget is used to display an image. to load an image asynchronously (for example from an external webserver), use the AsyncImage subclass.

Also you can watch the video for this article

Kivy Crash Course Articles

1: Kivy Crash Course Introduction & Installation

2: Introduction to Kv Design Language

3: Kivy Button with Callbacks

4: Kivy Layout Management

5: Kivy How to Create CheckBox

So there are two ways that you can create images in kivy, the first way is that you can create image using the kivy.uix.image module, and the second way is using the kivy design language, so first let’s just do the first way.

First let’s use an image from our working directory, i have already copied a image in my working directory.

from kivy.app import App
from kivy.uix.image import Image





class ImageWindow(App):
    def build(self):


        img =  Image(source='mypic.jpg')
        img.pos = (300,300)
        img.opacity = 0.5

        return img




if __name__ == "__main__":
    window = ImageWindow()
    window.run()

from kivy.app import App

from kivy.uix.image import Image

class ImageWindow(App):

def build(self):

img = Image(source='mypic.jpg')

img.pos = (300,300)

img.opacity = 0.5

return img

if __name__ == "__main__":

window = ImageWindow()

window.run()

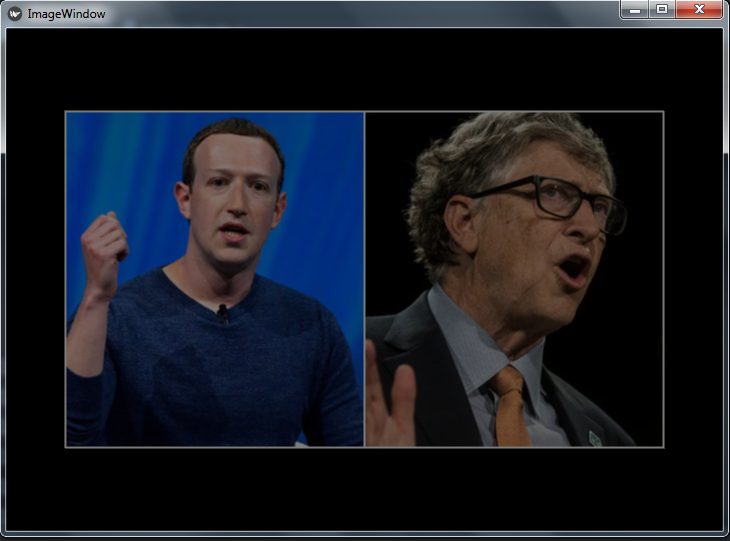

So you can see at the top first we have created the object of Image class, and we have passed the image name as source to the constructor of the class. also we have given position to the image with opacity. if you run the code this will be the result.

Kivy Crash Course - Image & AsyncImage Example — Kivy Crash Course – Image & AsyncImage Example

Now if you want to load an image from the internet, for this purpose you need to use AsyncImage.

from kivy.app import App
from kivy.uix.image import AsyncImage




class ImageWindow(App):
    def build(self):


        img = AsyncImage(source = "https://kivy.org/logos/kivy-logo-black-64.png")
        return img




if __name__ == "__main__":
    window = ImageWindow()
    window.run()

from kivy.app import App

from kivy.uix.image import AsyncImage

class ImageWindow(App):

def build(self):

img = AsyncImage(source = "https://kivy.org/logos/kivy-logo-black-64.png")

return img

if __name__ == "__main__":

window = ImageWindow()

window.run()

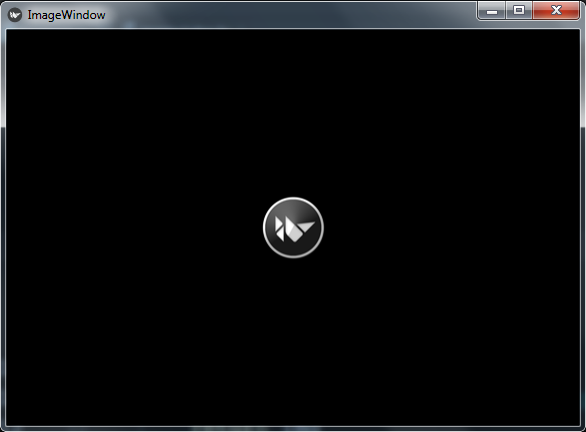

If you run the code this will be the result

So now let’s create the image using the kivy file, so first of all this is my python code. in this code basically i have just created a new class that extends from the image class and i have returned that class in my main app class.

from kivy.app import App
from kivy.uix.image import Image





class MyImage(Image):
    pass


class ImageWindow(App):
    def build(self):


        return MyImage()

if __name__ == "__main__":
    window = ImageWindow()
    window.run()

from kivy.app import App

from kivy.uix.image import Image

class MyImage(Image):

pass

class ImageWindow(App):

def build(self):

return MyImage()

if __name__ == "__main__":

window = ImageWindow()

window.run()

Now this is our .kv file, and i have name the file imagewindow.kv, make sure that this name should similar to the main app class name, in my case it is ImageWindow class.

#kivy 1.10.0



<MyImage>:
    source:'mypic.jpg'
    allow_stretch:True

#kivy 1.10.0

<MyImage>:

source:'mypic.jpg'

allow_stretch:True

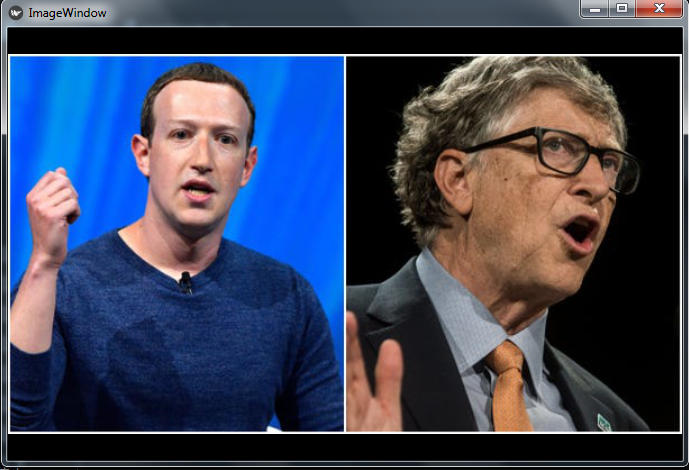

If you run the code this will be the result
